Lightning and surge protection

Electrical and electronic equipment is indispensable in the daily activities of today’s businesses and individuals. Such devices are connected to the electricity grid, often exchanging data and signals through communication lines and are usually sensitive to disturbances. These interconnecting networks provide a propagation path for overvoltage. Protection against lightning and overvoltage not only ensures the safety of people, goods and equipment, But also ensures continuity of installation services and meet criteria of energy efficiency. Overvoltage protection extends the life of the equipment by more than 20%, which significantly reduces the volume of electronic waste. It also reduces the power consumption of the installations, all of which translates into cost savings and environmental sustainability

TYPE OF SPD-
DC SPD.

STP T2 40 PV is the series of devices that provide advanced overvoltage protection to photovoltaic systems by utilizing Mersen’s Optimized dynamic thermal disconnection system, which does Not require additional over current protection (back-up fuse) due to its high short-circuit withstand rating. These surge protective devices are suitable for all PV applications: large-scale, rooftop and self-consumption (off-grid) DC installations.

FEATURES & BENEFITS :-

• Maximum discharge current (8/20μs): 40 kA
• Nominal discharge current (8/20μs): 10 kA, 20 kA
• Ucpv: 65, 80, 660, 1060 Vdc and 1500 Vdc
• Iscpv: 10 kA (EN 50539-11), no back-up fuse required
• SCCR: 50 kA, 65 kA, 100 kA (UL 1449 3rd Ed)
• DIN-rail mountable, plug-in format
• Visual and remote end of life indicators
• Reversible chassis to allow cable entry from above or below
• Mechanically coded cartridges to avoid cartridge replacement errors

TECHNICAL DATA OVERVIEW :-

• Class Type 2 EN 50539-11; Type 2 UL 1449
• Voltage Range DC 660 ... 1500 VDC
• Iscpv 10000 A
• SCCR 50 kA, 65 kA, 100 kA
• Body Material PA6 CT1; V-0
• System type Y PV, U PV
• Number of Poles 3, 2
• Format Pluggable
• Temperature range -40 ... 85 ° C
• Rigid wire Section 6 ... 25 mm²
• Response Time 25 ns

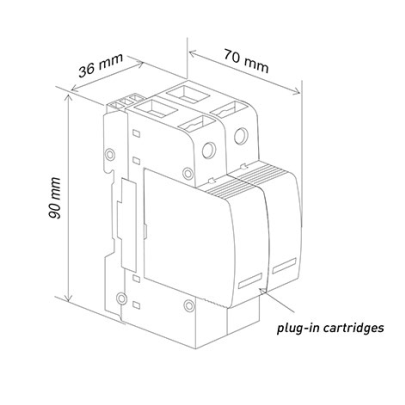

DIMENSIONS

3 Poles
FIG 1 -3 POLE
FIG 2 -2 POLE

AC SPD-
STP T2 40 is the series of Type 2/Class II devices for discharging voltage surges, in accordance with EN/IEC 61643. Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.

TECHNICAL DATA OVERVIEW :-

• Class Type 2 / Class II
• Un 48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V
• Imax 40 kA
• In (8/20) 20 kA
• Body Material PA66 CT1; V-0
• System type TT, TNS, TNC, IT
• Number of Poles 1,2,3,4
• Format Pluggable
• Temperature range -40 ... 80 ° C
• Icc 25 kA
• IP Code 20
• Back-up fuse 125 A gG
• Stranded wire Section 6 ... 25 mm²
• Rigid wire Section 6 ... 35 mm²
• Response Time 25 n

FEATURES & BENEFITS :-

• Maximum discharge current (8/20μs): 40kA per phase
• Nominal discharge current (8/20μs): 20kA per phase
• TNS, TNC, TT and IT networks
• Un (L-N/L-L): 48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V & higher
• DIN-rail mountable, plug-in format
• Visual and remote end of life indicators
• Reversible chassis to allow cable entry from above or below
• Mechanically coded cartridges to avoid cartridge replacement errors
• Back-up fuse: 125 AgG
• Icc 25 kA
• IP Code 20
• Back-up fuse 125 A gG
• Stranded wire Section 6 ... 25 mm²
• Rigid wire Section 6 ... 35 mm²
• Response Time 25 n

APPLICATIONS :-

• Industry and automation
• Commercial and residential installations
• Telecom & IT & Data Centers
• LED outdoor lighting
• Water treatment
• Smart grid & LV Metering
• Photovoltaic & wind
